This site features projects and circuits for building stereo microphones from low-cost Panasonic and Transsound electret microphone capsules. Included are Mid-Side, XY, and Blumlein microphone setups. In addition, there are interesting related circuits and links to sites with microphone information and parts sources.


MS Mic Version 2
This mic uses two Panasonic WM-55A103 cardioid electret capsules whose outputs are combined to form a figure eight mic for the side output, and a front-firing electret for the mid output. It has a stereo matrixing cicuit with adjustable width and a built-in preamp with adjustable gain providing a line level unbalanced output.
Circuit diagram and construction pics.
Phantom Powered XY Mic
This mic uses two Panasonic WM-55A103 cardioid electret capsules in XY configuration. A simple four transistor circuit uses phantom power to power the capsules and provide balanced microphone level low impedance outputs.
Circuit diagram and construction pics.

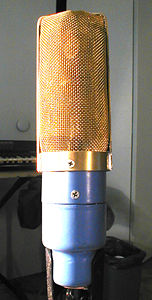

Transsound Capsule XY Mic
This mic uses two Transsound TSB-165A cardioid electret capsules in an XY configuration. Unlike the Panasonic capsules, these don't have internal FETs. This allows you to use better FETs with a proper gate bias resistor to achieve better noise and distortion performance. The TSB-165A capsules also have larger diaphagms and just plain sound better. This mic is pnatom powered with mic level outputs.
Circuit diagram and construction pics.
Figure-eight and Blumlein Circuits

Circuit diagrams to build simple figure-eight mics and Blumlein arrays.
